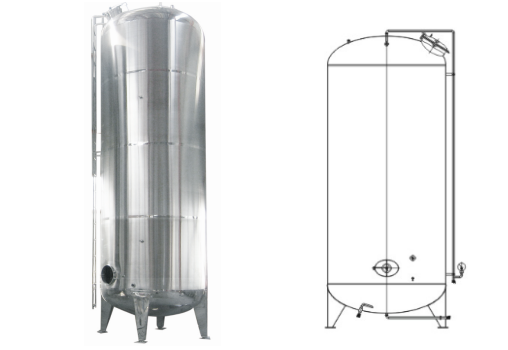

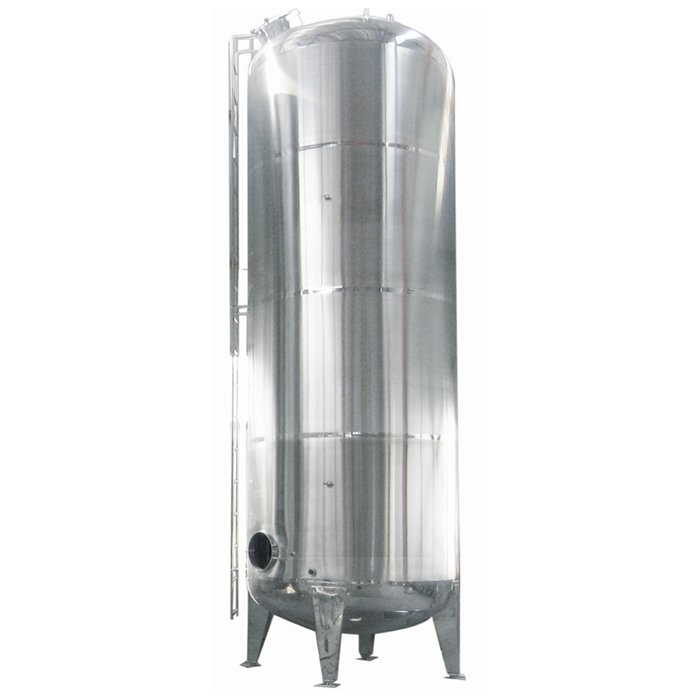

1. Single-layer vertical storage tank

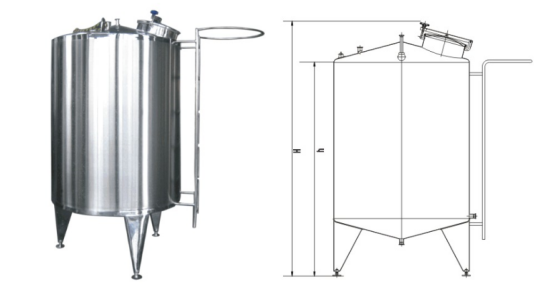

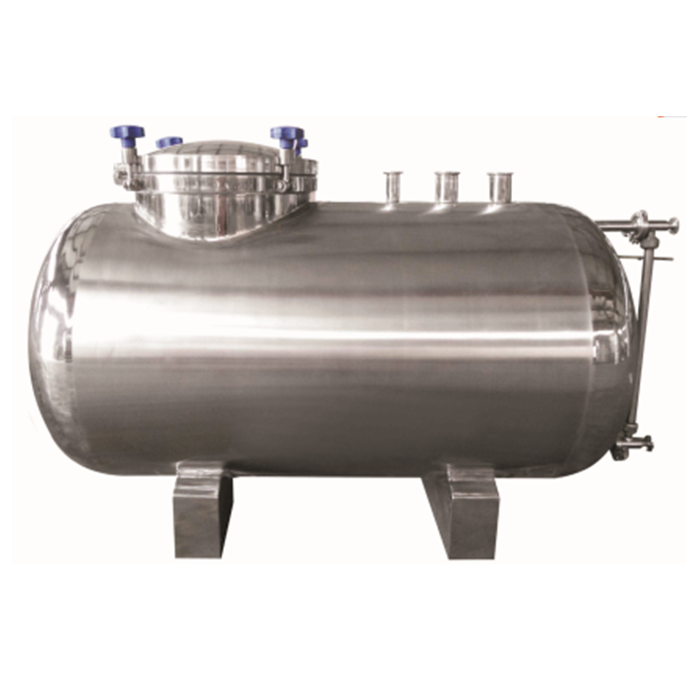

2. Single-layer vertical storage tank

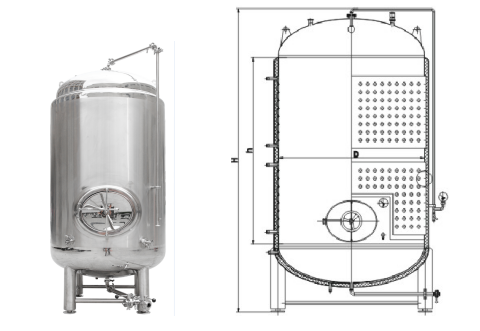

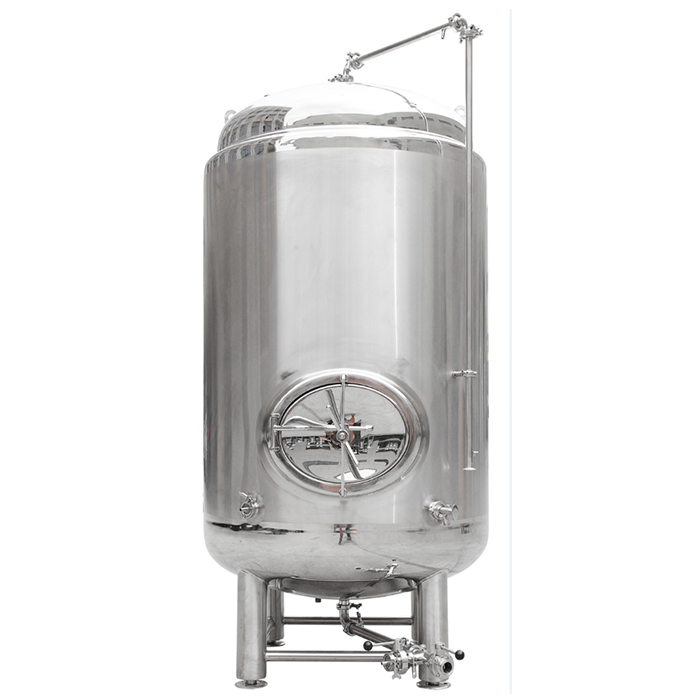

3. Three-layer vertical storage tank
容积 | 筒体(OD x H) | 总高 | 厚度 |
7BBL | 1050 x 950mm | 1910mm | 3mm |
10BBL | 1100 x 1350mm | 2360mm | 3mm |
15BBL | 1300 x 1500mm | 2610mm | 3mm |
20BBL | 1350 x 1750mm | 2910mm | 3mm |
30BBL | 1500 x 2100mm | 3340mm | 3mm |
40BBL | 1700 x 2100mm | 3420mm | 3mm |
50BBL | 1750 x 2450mm | 3800mm | 3mm |
60BBL | 1800 x 2500mm | 4160mm | 3mm |
80BBL | 2100 x 2600mm | 4250mm | 3mm |
100BBL | 2200 x 2950mm | 4650mm | 3mm |

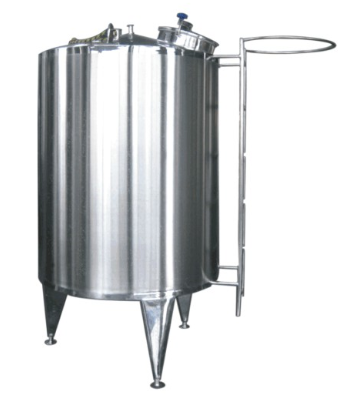

4. Single-layer vertical storage tank
Storage tanks can be used as liquid storage tanks, mixing tanks, temporary storage tanks, water storage tanks, etc.
It is suitable for the fields of food, dairy products, fruit juice beverage, pharmaceutical chemical industry and biological engineering.
Structure:
·Single-layer stainless steel structure.
·The materials are all sanitary stainless steel.
·Structural design is very user-friendly, and can be operated.
·The transition section of the simplified inner wall adopts arc transition to ensure sanitation and no dead angle. The structure of the mixing tank: mixing tank body, mixing tank cover, agitator, support, transmission device, shaft sealing device, etc., and heating device or cooling device can also be configured according to process requirements.
Tank configuration:
Quick opening hole
Various types of CIP cleaners
Anti-fly and insect sanitary breathable cover
Adjustable triangle legs
Detachable feed tube kit
Thermometer (can be configured according to the requirements of each household) one ladder (according to customer requirements)
Liquid level gauge and liquid level control (configured according to customer requirements)
Anti-vortex plate
Device Configuration:
Volume: 1BBL~100BBL
Material SS304
Tank body: single layer, double layer: liner + jacket Three layers: liner + jacket + heat preservation (outsourcing)
Polishing: mirror inside, matte outside / pickling inside, wire drawing outside
Accessories:
Tank configuration:
Quick opening hole
Various types of CIP cleaners
Anti-fly and insect sanitary breathable cover
Adjustable triangle legs
Detachable feed tube kit
Thermometer (can be configured according to the requirements of each household) one ladder (according to customer requirements)
Liquid level gauge and liquid level control (configured according to customer requirements)
Optional: sight glass, sight light, anti-vortex plate
