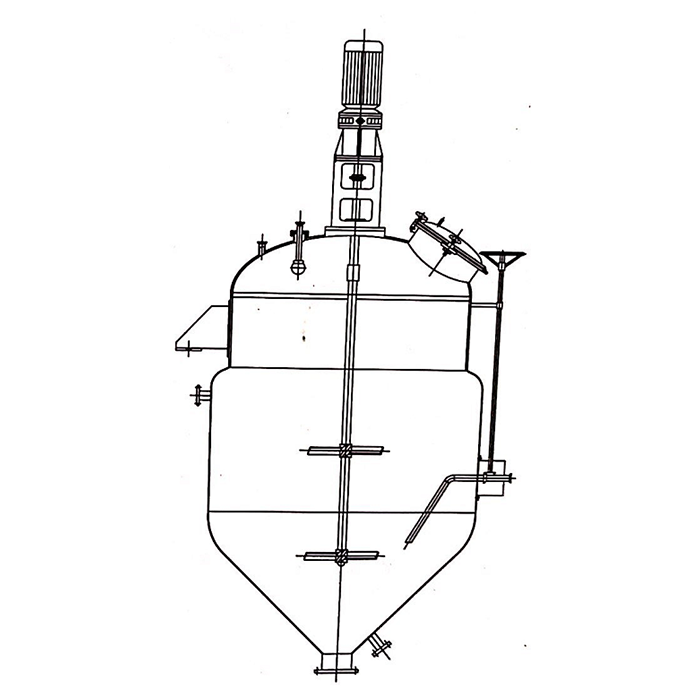

Alcohol precipitation tank is suitable for alcohol precipitation in traditional Chinese medicine, oral liquid, food, health care products, and chemical industries. Alcohol precipitation tank is a special equipment newly developed by the old process of alcohol precipitation (also known as solvent exchange or alcohol rod). It is mainly used for the operation of freezing or precipitation of alcohol at room temperature after the concentrated solution of traditional Chinese medicine decoction. It can also be used for alcohol extraction of traditional Chinese medicine. After that, the concentrate is subjected to water precipitation operation. This equipment is assembled by a tong round head, a cylindrical body with a conical bottom, a three-blade stirring inside, and a special fine-tuning spin-out tube. The decoction concentrate of traditional Chinese medicine is prepared by adding alcohol to a certain alcoholic liquid, and then freezing and sedimentation at room temperature and low temperature for liquid-solid separation to improve the purity and clarity of the Chinese medicine extract. The parts of this equipment in contact with materials are made of stainless steel, which is durable and meets the requirements of GMP standards. Structure:

Adopt the structure of inner cylinder and outer cover, and filled with heat preservation material in the middle.

The materials are all sanitary stainless steel.

The structure design is very humane, and it can be operated.

The transition section of the inner wall of the cylinder adopts arc transition to ensure sanitation and no dead corners.

Jar structure:

ABB or Siemens motor

Quick opening hole

Various types of CIP cleaners

Anti-fly and insect sanitary breathable cover

Adjustable triangle legs

Detachable feed tube kit

Steam material outlet

Thermometer (can be configured according to the requirements of each household)
