Equipment introduction

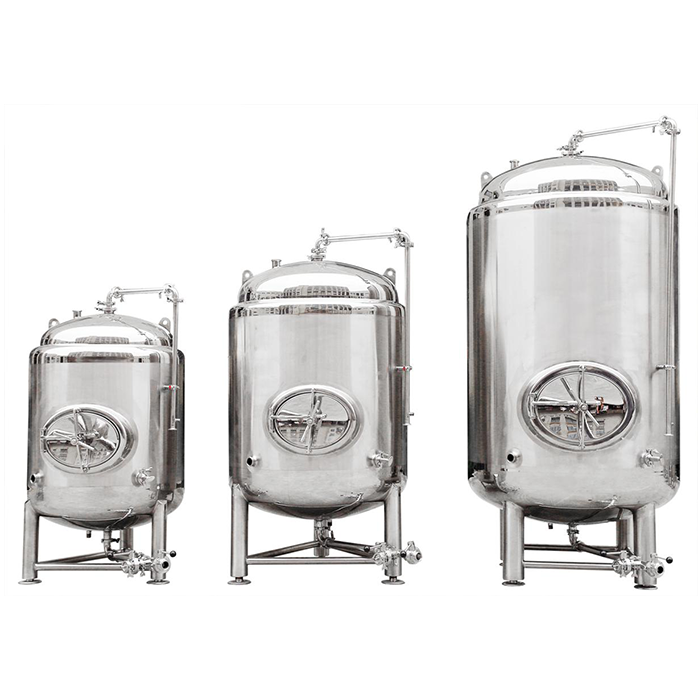

Bright tanks for storing fresh wine. Bright tanks are mainly used for cleaning beer. Self-brewed beer equipment and beer tanks are mostly used in the beer industry. A type of bright tank in the wine industry is generally collectively called a wine storage tank. The working volume ranges from 1BBL to 100BBL.

A cylinder with a conical bottom. The material is usually made of stainless steel. The outer layer is made of polyurethane insulation material. The temperature control is realized by the refrigerant (usually alcohol-water) in the jacket around the tank. Generally, it is cooled in 2 or 3 stages. It depends on the size of the tank. Temperature control is optional. Usually, it is unnecessary to use this method if the sake turnover rate is fast. Basically, the bright tanks in the southern cities of my country have no temperature control.

All tanks are made of certified stainless steel, with 100% TIG welded joints, and internal welds are sanitary polished. All tanks are connected by quick installation, the design pressure starts at 14.7 PSI, and the test pressure is 30 PSI. We can customize tanks for different needs according to customers' space and production needs.

Device Configuration:

Volume: 1BBL~100BBL

Material SS304

Design: Three layers with cooling jacket and PU insulation

Polishing: External mirror

Accessories: pressure relief valve, CIP pipe, sampling port, carbon port, discharge port, thermometer,lifting lugs, adjustable feet, manway

Equipment size
