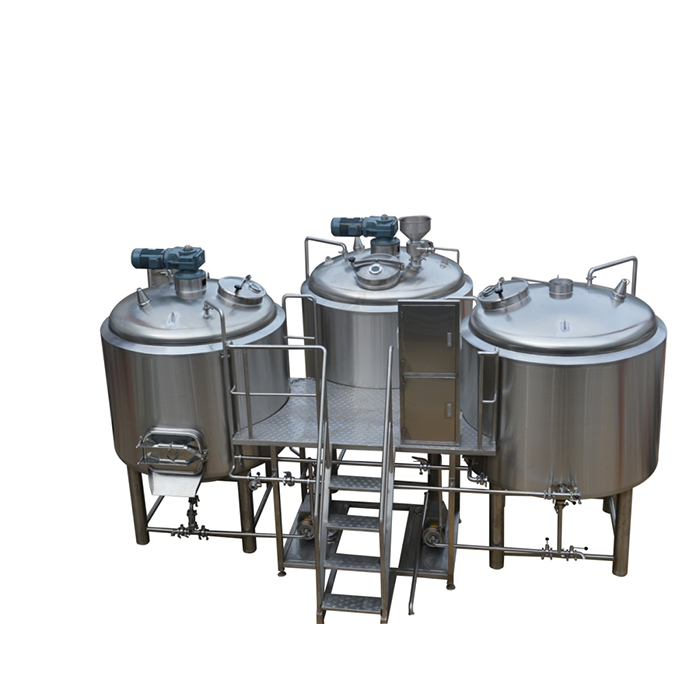

Three-vessel steam heating saccharification system
Three-vessel steam heating saccharification system

With bottom filter plate

With filter stirrer

Sight light

Top visible glass manhole

CIP cleaning ball

Bottom top water cleaning ball

Side square discharge manhole

Discharge hopper

Detailed description

Equipment introduction:

If you want to brew a good beer, a good saccharification system is the key. Our saccharification system is based on absorbing European advanced experience in beer machinery technology, and can meet various brewing processes, different flavors or different capacities of beer.



10BBL | 20BBL | 30BBL | 40BBL | 50BBL The size of the saccharification system is the standard production size, and if the customer needs a larger size, it can be customized according to customer needs. According to the different heating methods, the saccharification system can be divided into three types: steam heating, gas heating, and electric heating. It can also be combined with multiple heating methods according to the situation. A set of saccharification system is composed of saccharification tank, filter tank, boiling tank, suspension tank, etc. The four tanks can be combined at will to meet the requirements of different brewing systems.



 All tanks are made of certified stainless steel, with 100% TIG welded joints, and internal welds are sanitary polished. All tanks are connected by three clamps, the design pressure starts at 14.7 PSI, and the test pressure is 30 PSI. We can customize cans for different needs according to customers' space and production needs.



Each tank can be customized nameplate, valves and accessories of different standards.

Device Configuration:

   Two-vessel steam heating saccharification system

Volume: 5BBL/7BBL/10BBL/15BBL/20BBL/30BBL or customized

· Saccharification tank:

With gouache mixer

With steam jacket

Saccharification and stirring

Spray pipe in tank

Sight light

Top visible glass manhole

CIP cleaning ball

Thermometer probe

· Filter tank

With bottom filter plate

With filter stirrer

Sight light

Top visible glass manhole

CIP cleaning ball

Bottom top water cleaning ball

Side square discharge manhole

Discharge hopper

Thermometer probe

· Boiling suspension tank:

With steam jacket

With tangent

Bottom baffle

Sight light

Top visible glass manhole

CIP cleaning ball

Top steam outlet, with condensate drain pipe/with condensing tower

Thermometer probe

· Buffer tank: all stainless steel/all glass/stainless steel with glass sight glass

· Stainless steel operating platform: with ladder and guardrail

· Plate heat exchanger

· Sanitary transfer pump*2;

· Oxygenation device (Venturi tube);

· Manual or semi-automatic control system;

· Internal surface pickling passivation / mirror polishing

· Outer surface brushed / matte polished

· Hot and cold water mixing device

Other heating methods reference

Electric heating:

1. Insert an electric heating tube into the jacket, use the electric heating tube to heat the medium in the jacket and then heat the substance in the tank

2. Insert the electric heating tube directly into the inner tank, and heat the material directly when working



Gas heating:

Install a gas stove at the bottom of the tank to be heated, and use gas for heating
